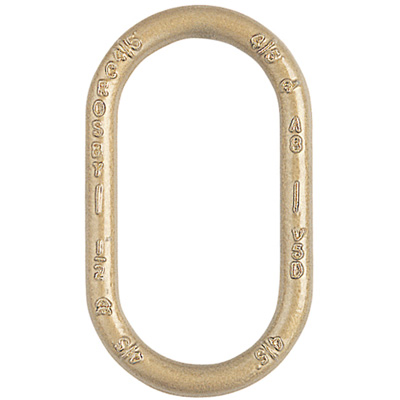

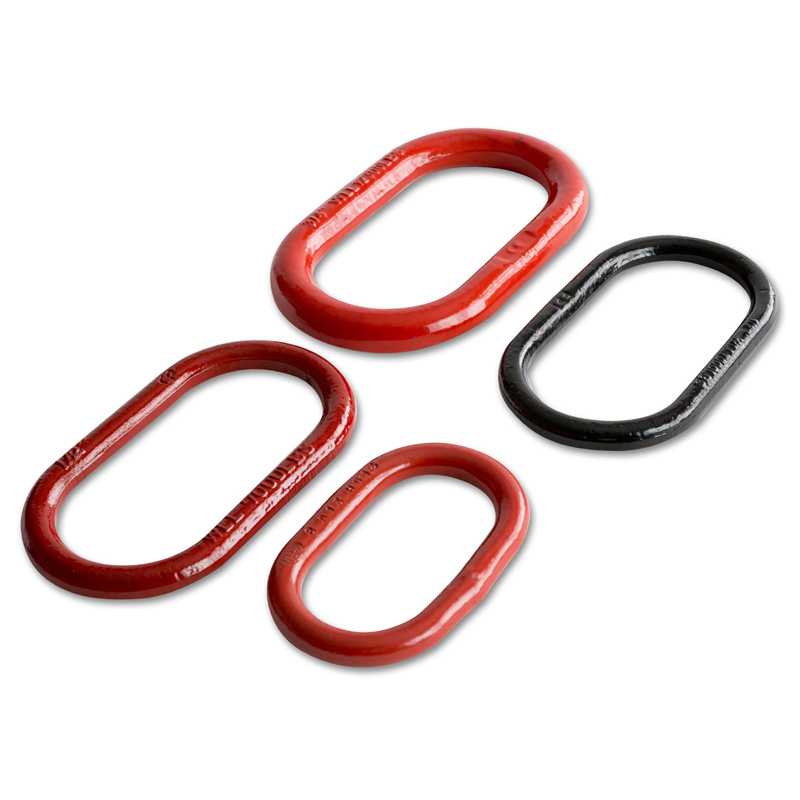

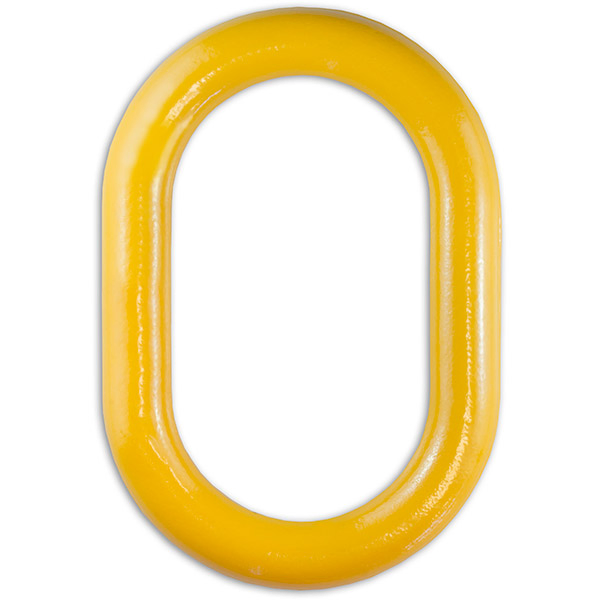

Rigging Hardware Spray Forged Master Link
Application:Nuclear power, hydro-power, wind power, machine tools, shipbuilding, mining, marine engineering, heavy industry machinery, transportation, port and docks, metallurgy, bridges, aerospace ect.About us:1.Nearly 20 years experience in production2.Owned factory, with superior quality and comp......
Send Inquiry
Product Description
Application:
Nuclear power, hydro-power, wind power, machine tools, shipbuilding, mining, marine engineering, heavy industry machinery, transportation, port and docks, metallurgy, bridges, aerospace ect.
About us:
1.Nearly 20 years experience in production
2.Owned factory, with superior quality and competitive price
3.Has a professional technical R & D team, integrating R & D, production and sales
4.The product has passed the environmental management system certification
5.ODM,OEM service is available
Details specification:
Packaging and delivery:
Usually packed in plastic bags, and then in export carton, high quality pallets ;
According to your requirements.
Delivery Detail: Usually 15-20 working days after receiving your advance payment.
Advantages:
1.The product has passed the environmental management system certification
2.can apply for the certification of CCS, LR, DNV and other well-known classification societies
3.High product strength, light weight, exquisite design, strong versatility
4.versatile functions, convenient use and safety testing
5.ODM,OEM service is available
Nuclear power, hydro-power, wind power, machine tools, shipbuilding, mining, marine engineering, heavy industry machinery, transportation, port and docks, metallurgy, bridges, aerospace ect.
About us:
1.Nearly 20 years experience in production
2.Owned factory, with superior quality and competitive price
3.Has a professional technical R & D team, integrating R & D, production and sales
4.The product has passed the environmental management system certification
5.ODM,OEM service is available
Details specification:
A-342 Forging master link
| A-342 forging master link breaking load (5XWLL) | |||||
| specification | diameter | Inside length | Inside width | WLL(T) | Weight(KG) |
| 1/2 | 14 | 127 | 63.5 | 3.2 | 0.45 |
| 5/8 | 16 | 152 | 76 | 4.1 | 0.7 |
| 3/4 | 19 | 140 | 70 | 5.6 | 1 |
| 7/8 | 22 | 160 | 90 | 6.8 | 1.5 |
| 1 | 25 | 178 | 89 | 11 | 2.06 |
| 1-1/4 | 32 | 220 | 110 | 16.4 | 4.23 |
| 1-1/2 | 38 | 267 | 135 | 24.6 | 7.5 |
| 1-3/4 | 45 | 305 | 152 | 38.5 | 11.5 |
| 2 | 51 | 355 | 178 | 46.5 | 16.5 |
| 2-1/4 | 57 | 406 | 203 | 64.9 | 24.5 |
| 2-1/2 | 63.5 | 406 | 203 | 72.6 | 31 |
| 2-3/4 | 70 | 406 | 240 | 98.4 | 41 |
| 3 | 76 | 456 | 228 | 103.4 | 52 |
| 3-1/4 | 82 | 508 | 254 | 119 | 66 |
| 3-1/2 | 89 | 610 | 305 | 126.5 | 91 |
| 3-3/4 | 95 | 508 | 254 | 152.4 | 90 |
| 4 | 100 | 508 | 254 | 169.2 | 103.5 |
Packaging and delivery:
Usually packed in plastic bags, and then in export carton, high quality pallets ;
According to your requirements.
Delivery Detail: Usually 15-20 working days after receiving your advance payment.
Advantages:
1.The product has passed the environmental management system certification
2.can apply for the certification of CCS, LR, DNV and other well-known classification societies
3.High product strength, light weight, exquisite design, strong versatility
4.versatile functions, convenient use and safety testing
5.ODM,OEM service is available
