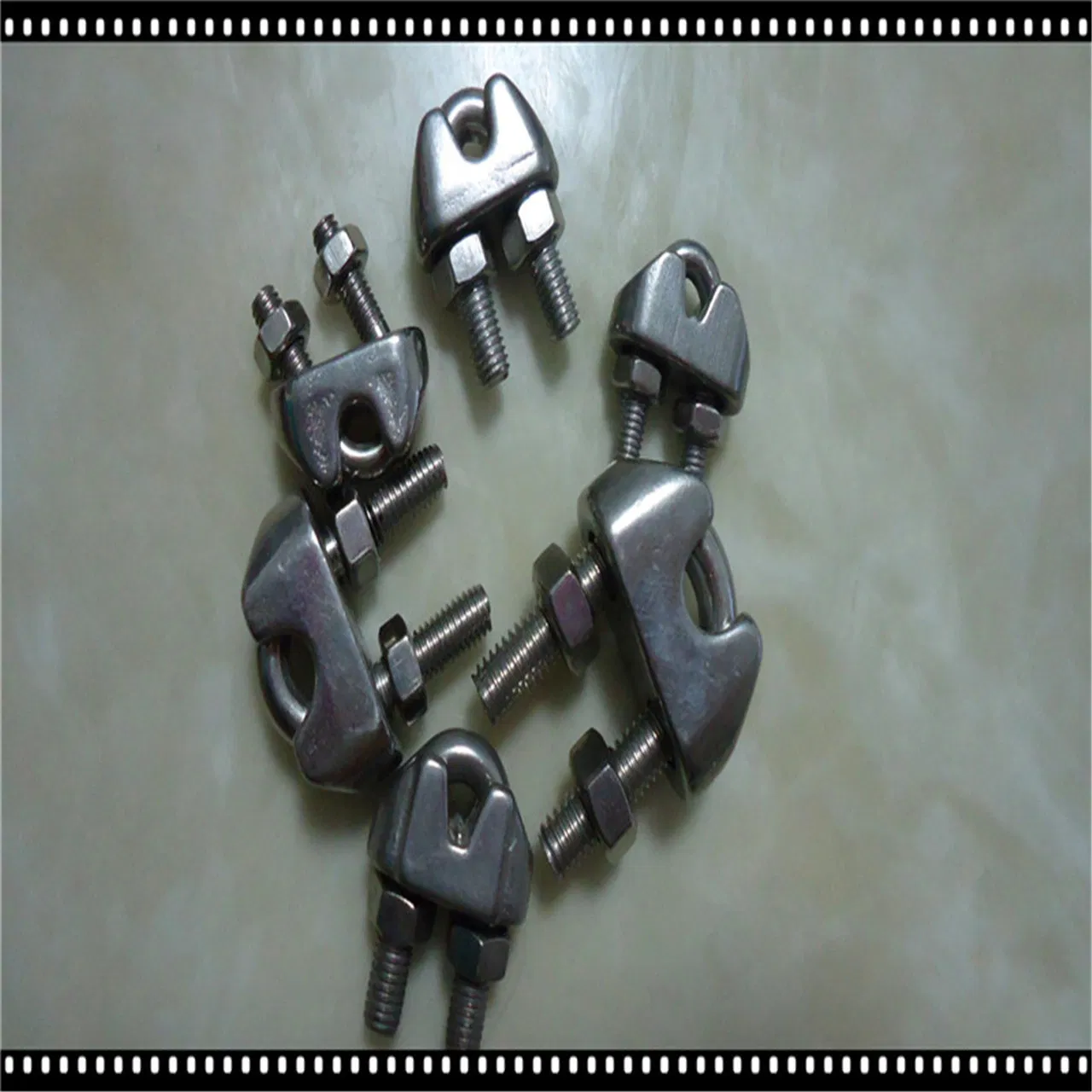

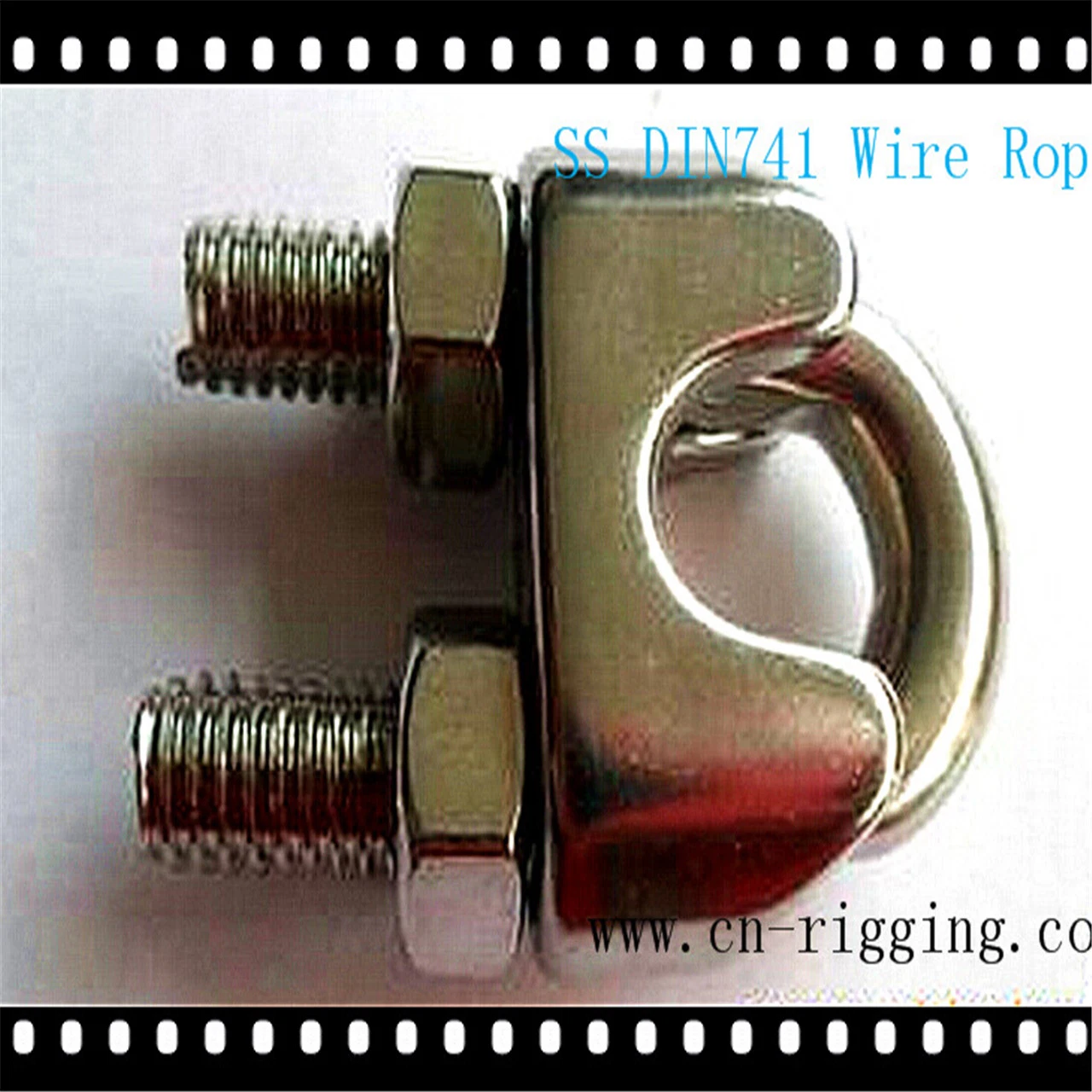

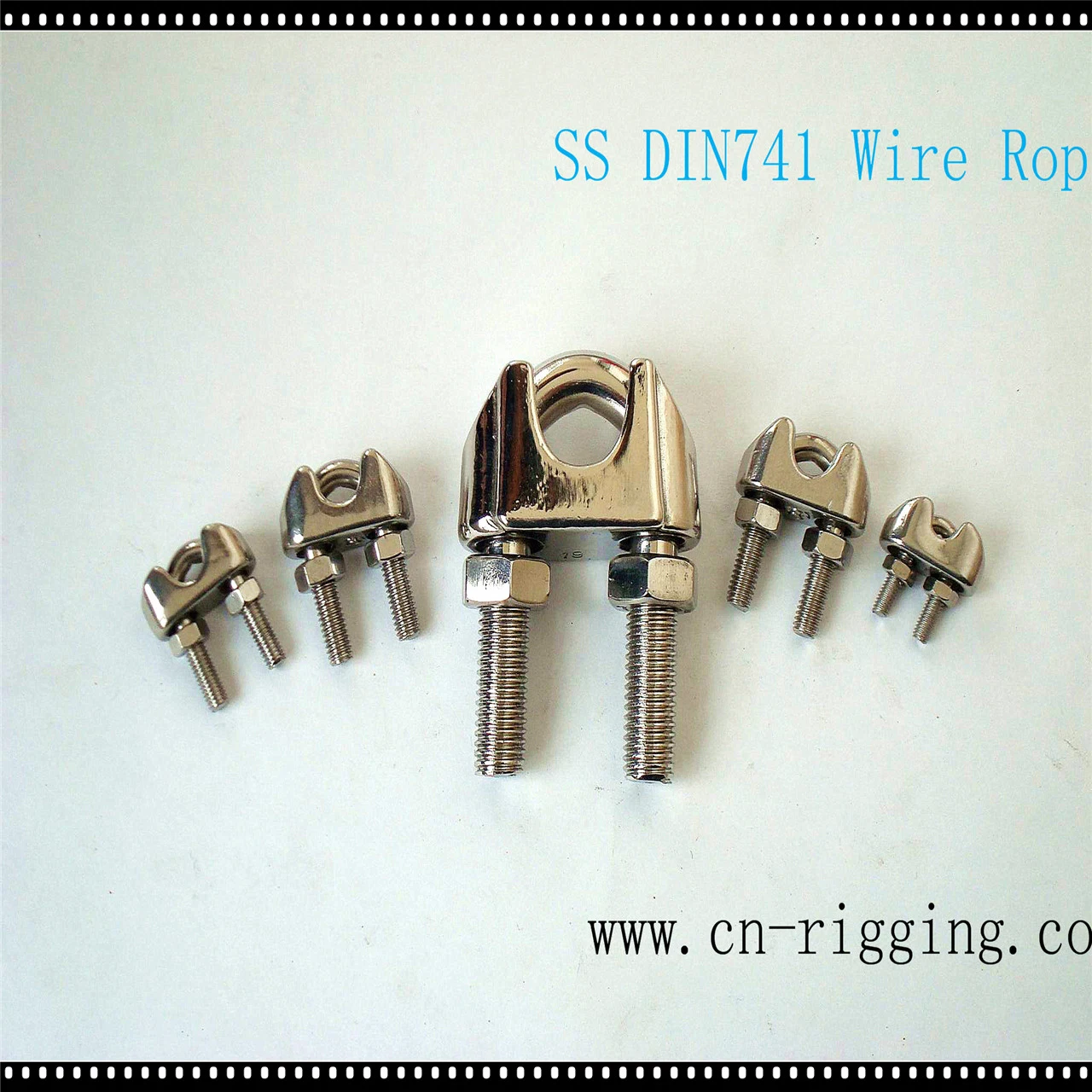

China Wire Rope Clamp for Rope Loop Stainless Steel DIN741

Product Description

Specification of DIN741 Wire Rope Clip

SIZE	A	B	C	D	E	F	G
M3	9	10	12	4	10	21	16
M5	11	11	13	5	10	23	19
M6	13	12	15	5	11	26	23
M8	16	14	19	6	15	30	28
M10	19	18	22	8	17	34	34
M11	20	19	22	8	18	36	36
M13	24	23	30	10	21	40	45
M14	25	23	30	10	22	44	47
M16	29	26	33	12	26	50	51
M19	32	29	38	12	30	54	63
M22	37	33	44	14	34	61	71
M26	41	35	45	14	37	65	81
M30	46	37	50	16	43	74	94
M34	52	42	55	16	50	80	104
M40	58	45	60	16	55	88	124

Instructions for use
Wire rope clips should be inspected before use to ensure that:
• all markings are legible;
• a wire rope clip with the correct dimensions has been selected;
• the nuts or any other locking system cannot vibrate out of position;
• the wire rope clip is free from nicks, gouges and cracks;
• never modify, repair or reshape a wire rope clip by machining, welding, heating or bending as this may affect their performance. The wire rope clip should be fitted to the wire rope as shown in below figures. The bridge of the wire rope clip should always be placed on the load bearing part of the rope. The U-bolt of the clip should be placed on the rope tail, also known as the dead end of the rope. Turn back enough wire rope length so that the required minimum number of clips can be installed according to the instructions below. The first clip must be placed one bridge width from the turned-back rope tail or dead end of the rope, according to figure 1. Tighten the nuts to the specified torque.
Safty:
