Manufacturer China Stainless Steel DIN 764 Link Chain
High Strenhtg G80 Lifting Chain:Size: 6mm-42mmMaterial: Alloy steel, high tensile, heat treated.Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coatedColor: Self color, Red , grey, green, as to your requestApplication: Ship, iron and steel industry, petroleum chemical ind......
Send Inquiry
Product Description

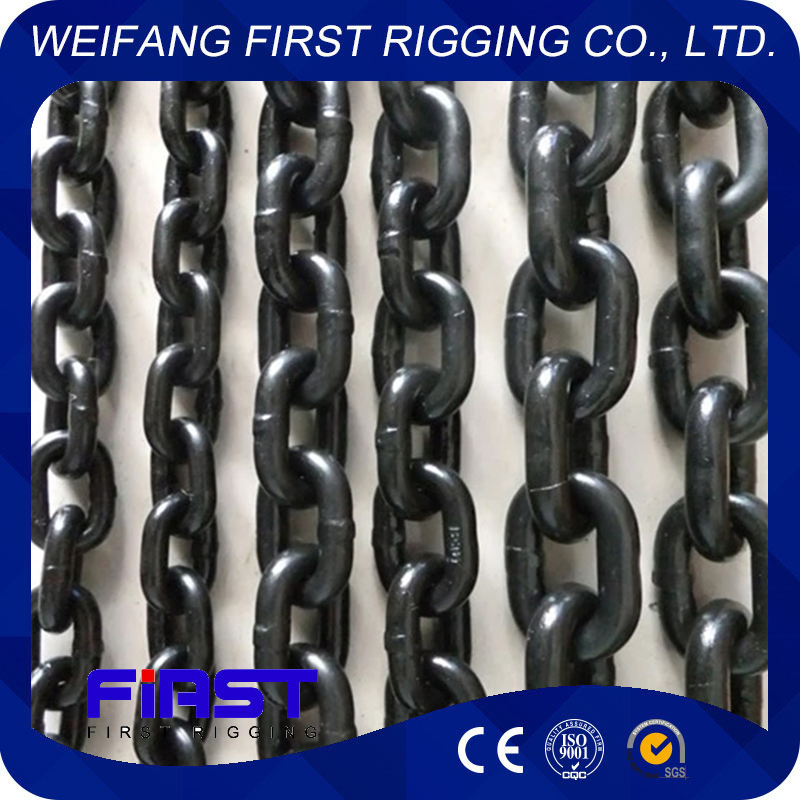

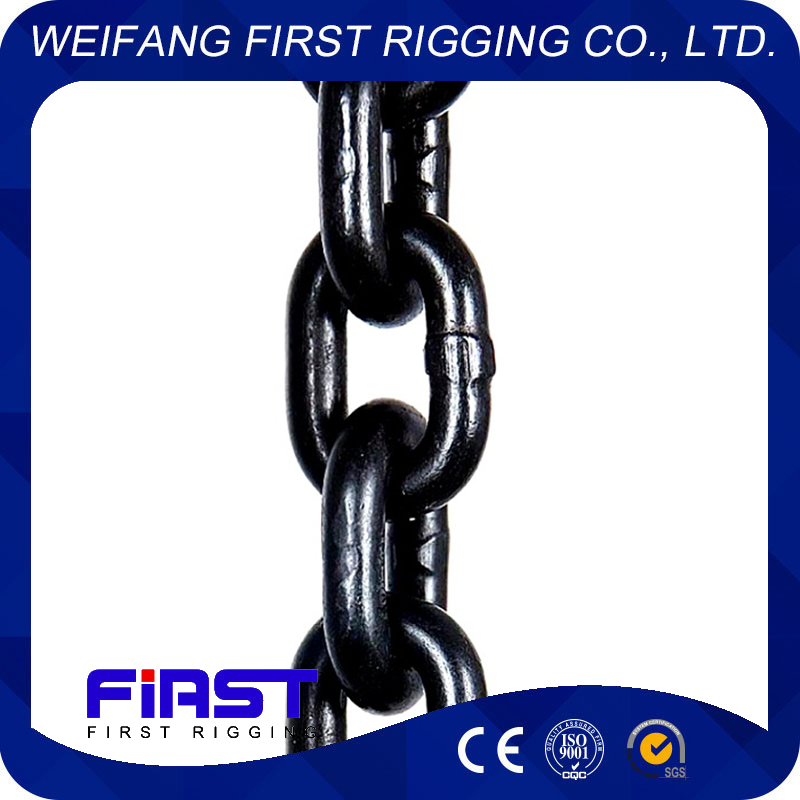

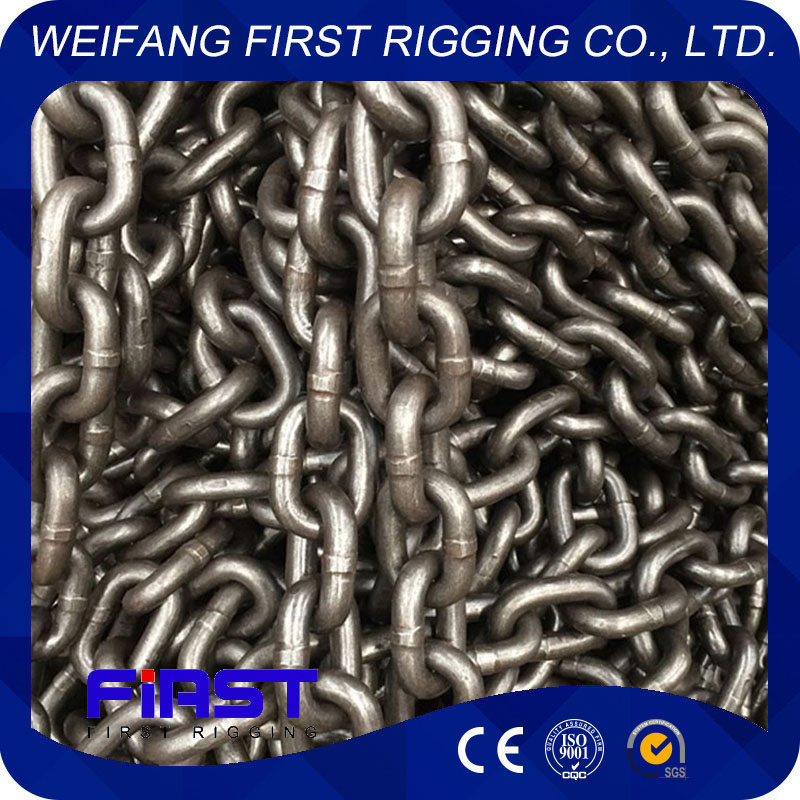

High Strenhtg G80 Lifting Chain:
Size: 6mm-42mm
Material: Alloy steel, high tensile, heat treated.
Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated
Color: Self color, Red , grey, green, as to your request
Application: Ship, iron and steel industry, petroleum chemical industry, coal mine

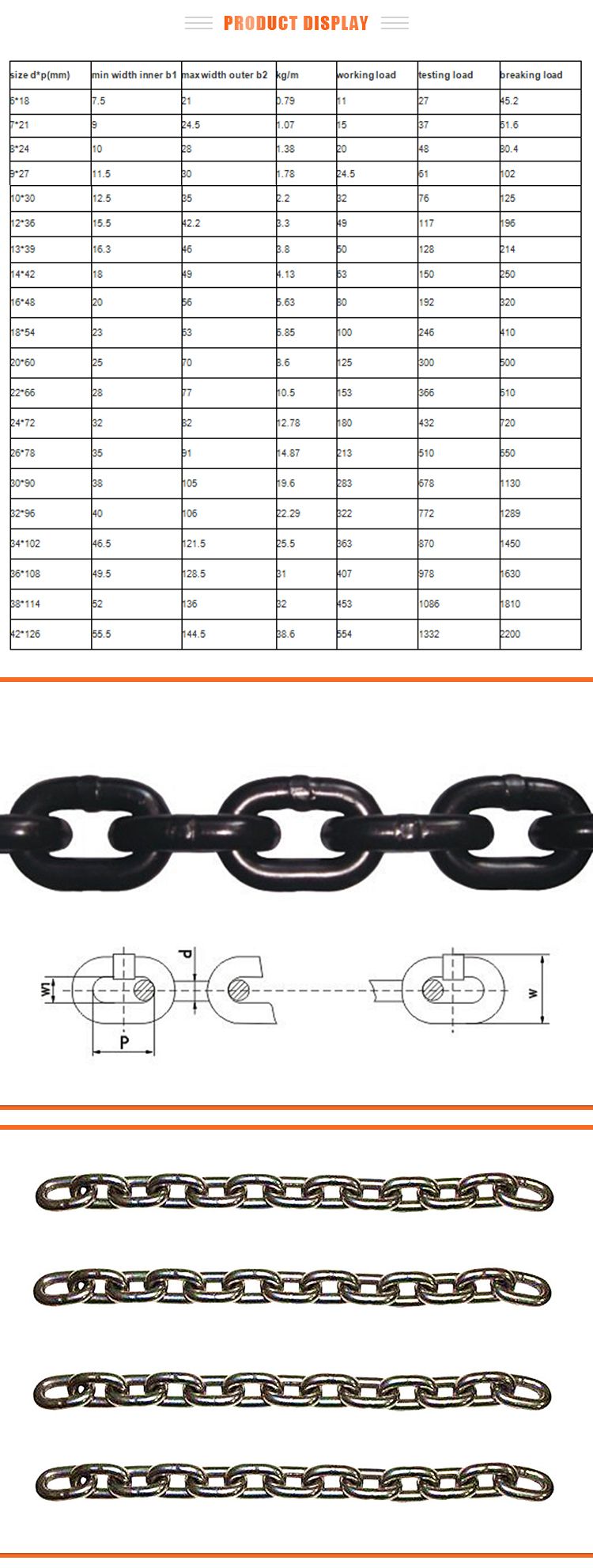

Technical Specification( Load chain):
| Size(mm) | Min inside width | Max outside width | Weight(kg/m) | working load(KN) | test load(KN) | test load(KN) |
| 6*18 | 7.5 | 21 | 0.79 | 11 | 27 | 45.2 |
| 7*21 | 9 | 24.5 | 1.07 | 15 | 37 | 61.6 |
| 8*24 | 10 | 28 | 1.38 | 20 | 48 | 80.4 |
| 9*27 | 11.5 | 30 | 1.9 | 24.5 | 61 | 102 |
| 10*30 | 12.5 | 35 | 2.2 | 32 | 76 | 125 |
| 12*36 | 15.5 | 42.2 | 3.3 | 49 | 117 | 196 |
| 13*39 | 16.3 | 46 | 3.8 | 50 | 128 | 214 |
| 14*42 | 18 | 49 | 4.13 | 63 | 150 | 250 |
| 16*48 | 20 | 56 | 5.63 | 80 | 192 | 320 |
| 18*54 | 23 | 63 | 6.85 | 100 | 246 | 410 |
| 20*60 | 25 | 70 | 8.6 | 125 | 300 | 500 |
| 22*66 | 28 | 77 | 10.5 | 153 | 366 | 610 |
| 24*72 | 32 | 82 | 12.78 | 180 | 432 | 720 |
| 26*78 | 35 | 91 | 14.87 | 213 | 510 | 650 |
| 30*90 | 38 | 105 | 19.6 | 283 | 678 | 1130 |
| 32*96 | 40 | 106 | 22.29 | 322 | 772 | 1289 |
| 34*102 | 46.5 | 121.5 | 25.5 | 363 | 870 | 1450 |
| 36*108 | 49.5 | 128.5 | 31 | 407 | 978 | 1630 |
| 38*114 | 52 | 136 | 32 | 453 | 1086 | 1810 |
| 42*126 | 55.5 | 144.5 | 38.6 | 554 | 1332 | 2200 |
Packaging & Delivery:
Packing details:
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements
Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
